Introduction
Follow these instructions to replace the hidden battery lock on your Duo series bike/FS Pro.
You will need the following tools to do this:
Phillips Screwdriver
3mm Allen Key
You will also need to have the Hidden Battery removed before starting.
Step 1

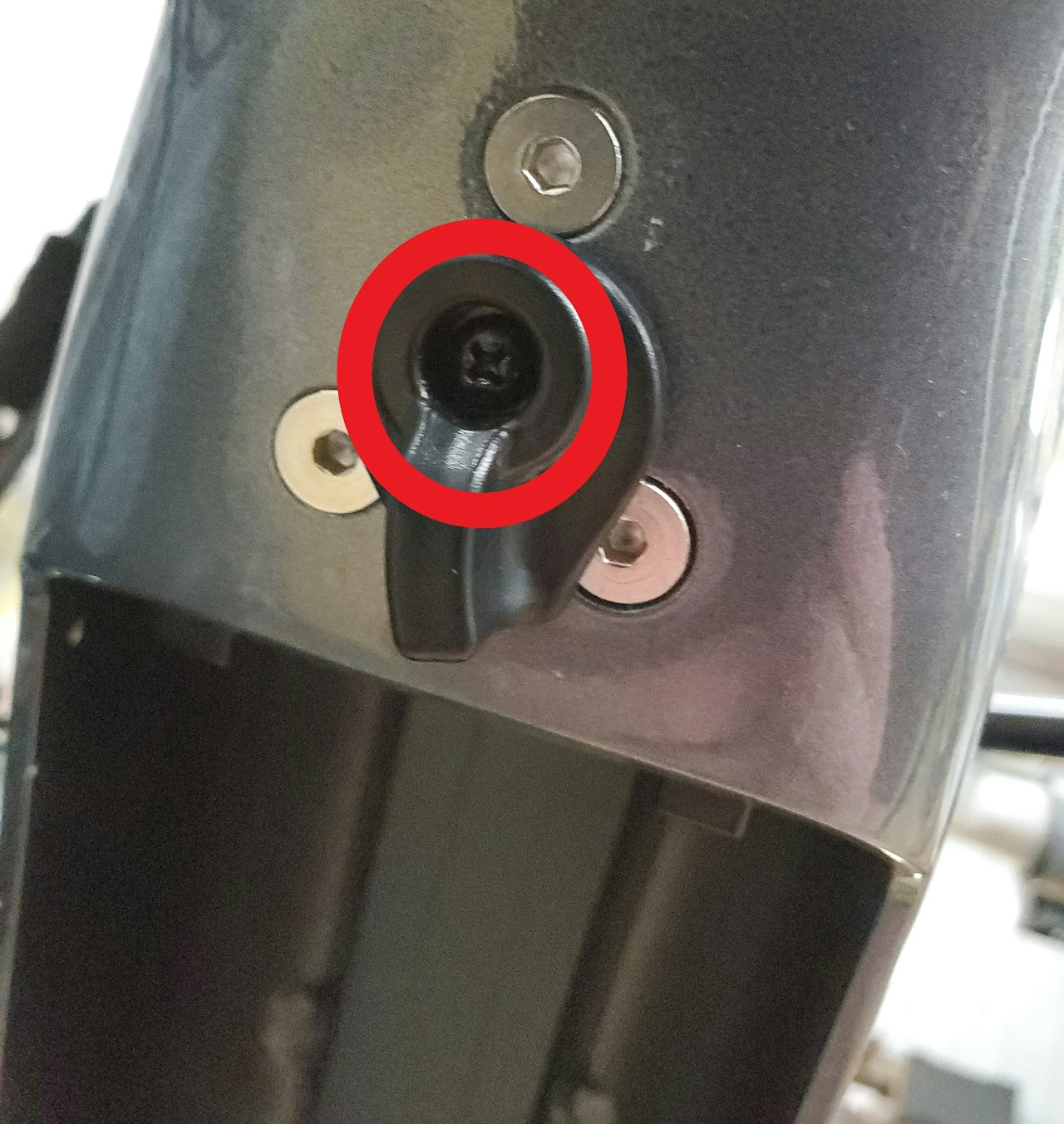

Loosen and remove the one screw holding the Battery Release Knob in with the Phillips Screwdriver

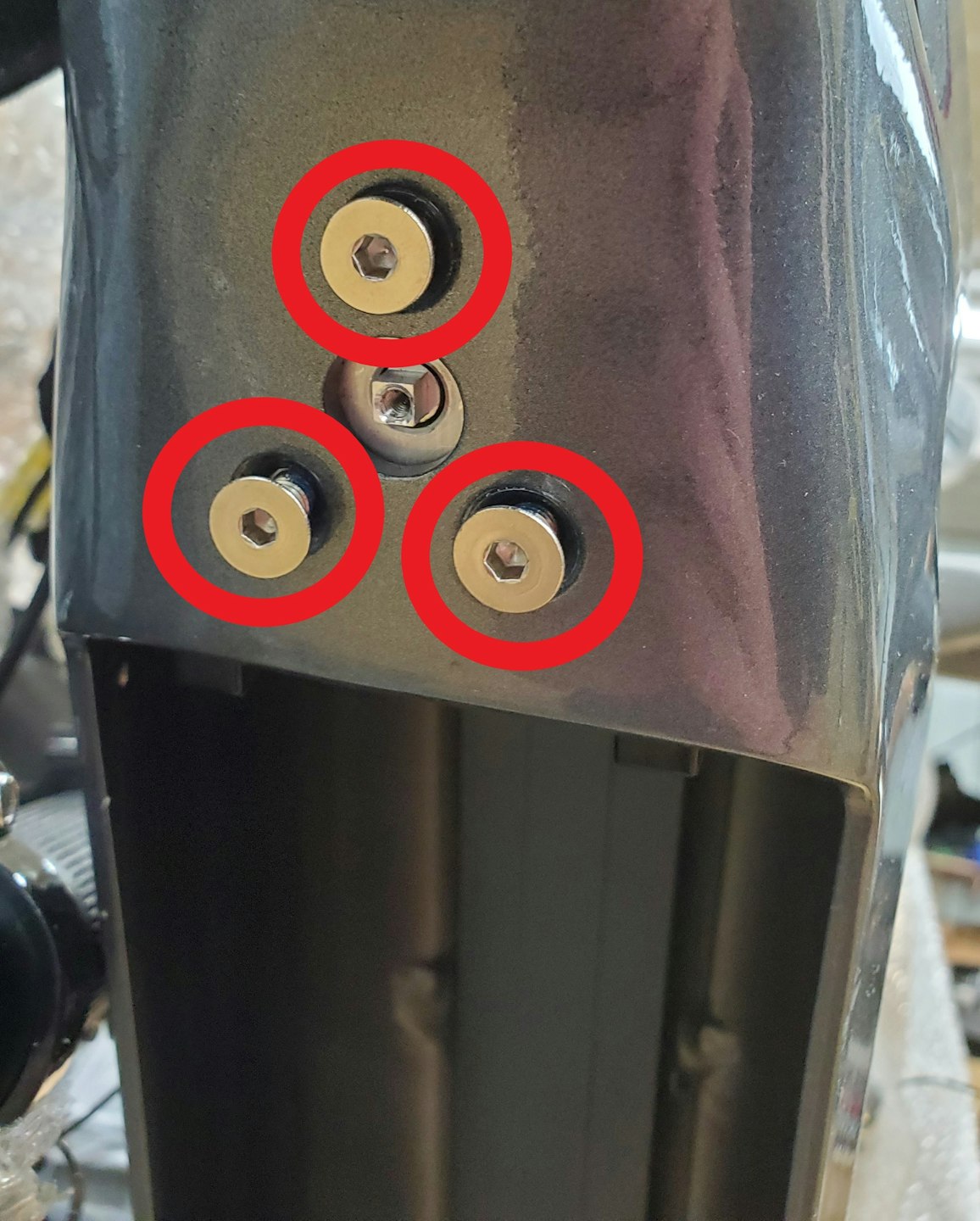

With the Battery Release Knob removed, undo the three bolts around it with the 3mm Allen Key.
Step 2
- Wiggle the battery lock and move the keyhole slot out of the slot in the frame. The lock should then be able to be slid out
- With the old battery lock removed you are able to install the new replacement lock. To do this simply reverse the steps you performed to remove the old lock.
