Introduction

You may need to provide some extra security to your Kutty X 2 motor power wire before going out riding. This is a simple fix to perform!

You will need the following to do this:

  • 1 x Zip Tie (small or large will work)

  • Snips or scissor to trim the end of the zip tie

Step 1

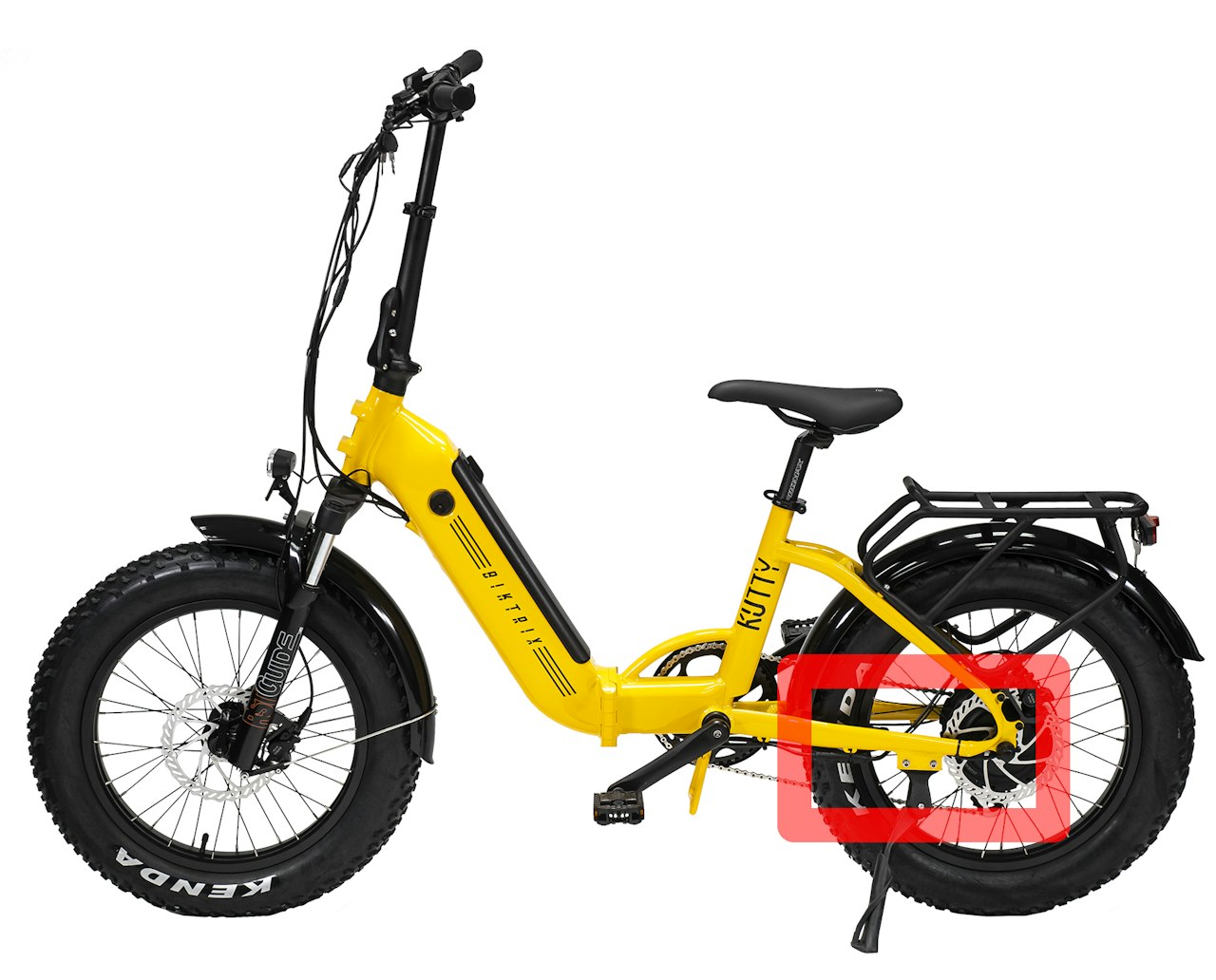

  • Move yourself to examine the non-drive side chainstay of the bike - the highlighted area in the first image.

  • Take a zip tie to attach the thick black wire coming from the motor to the frame.

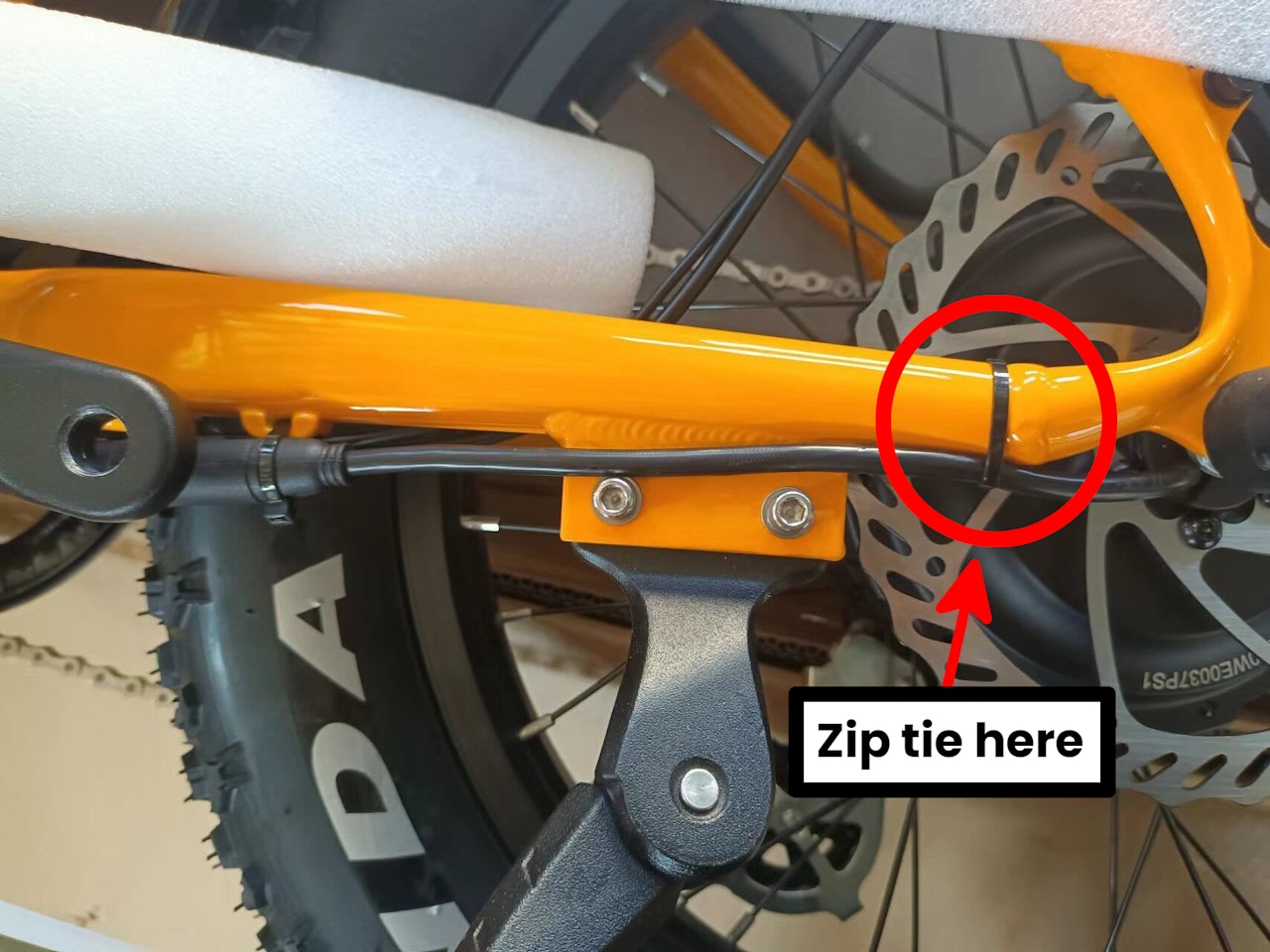

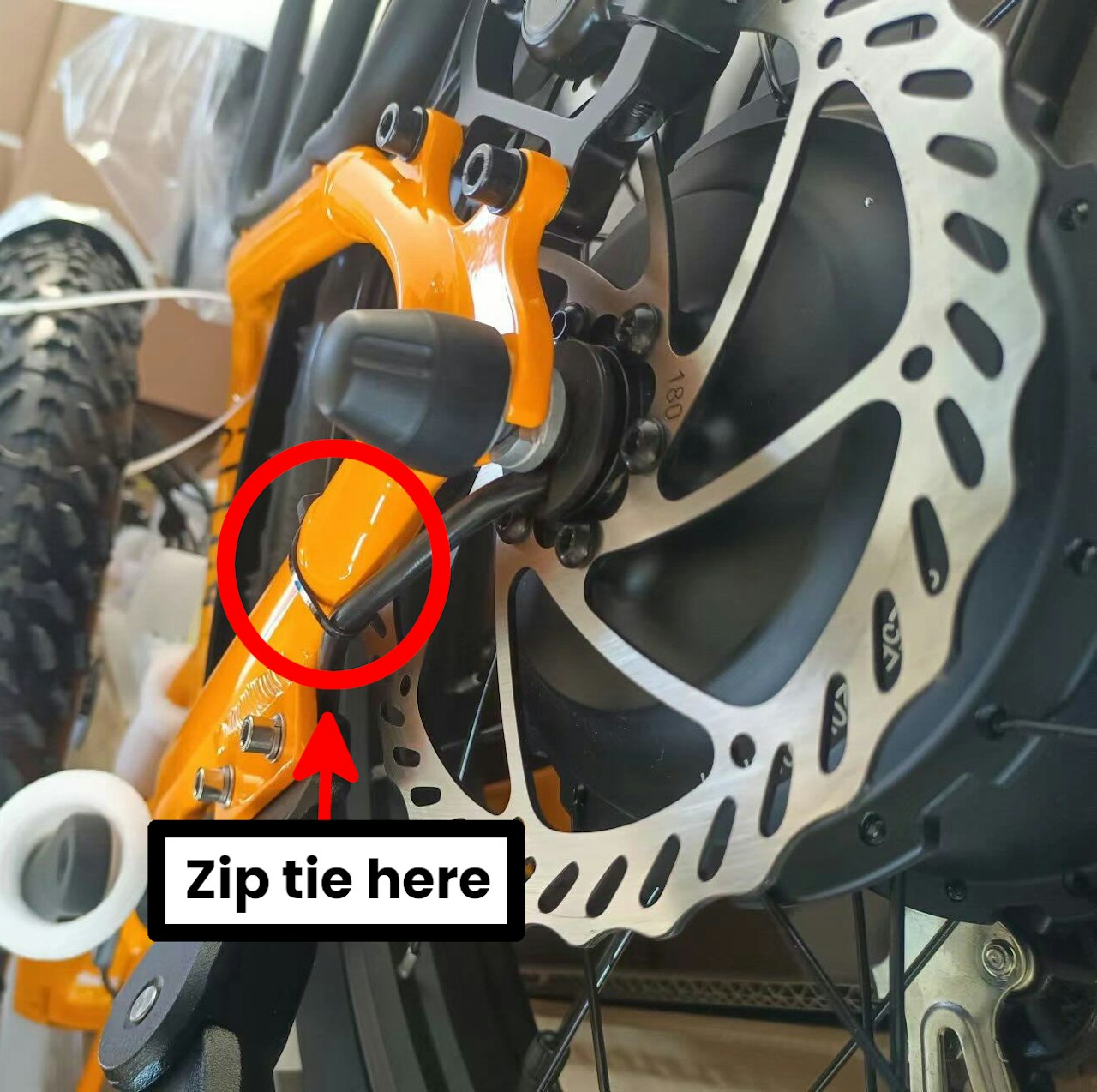

  • Use that zip tie to cinch the motor power wire to the frame at the spot illustrated in the second and third attached images.

  • With the zip tie fully cinched tight snip off any excess length from the end of the zip tie.

You are now done and ready to go and ride!
